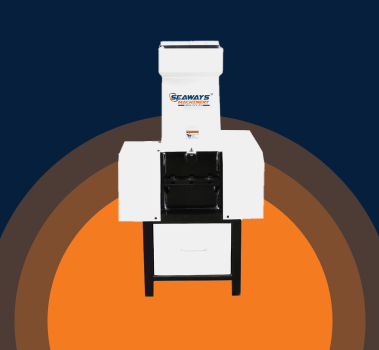

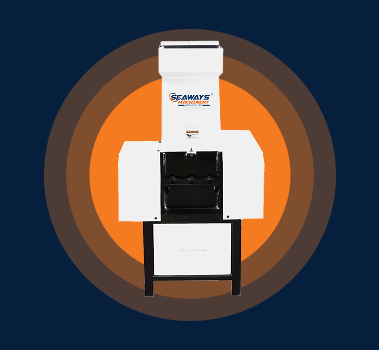

Demo Plastic Scrap Grinder Machine
- 1 Year Warranty, 10 – 30 Inch Models, 9 Variants Available, Made in India
Price Range (Ex-Factory, Rajkot)
₹65,000.00
Price varies by model size & motor capacity. Contact us for exact quote.
- 10+ Years Manufacturing
- Pan-India Delivery
- After-Sales Support
- Spare Parts Available
- 10+ Years Manufacturing
- Pan-India Delivery
- After-Sales Support
- Spare Parts Available
Machine Features
Built to industrial standards for heavy-duty, continuous operation across all plastic types.
Robust Construction
Heavy-duty MS and SS frame built to withstand continuous grinding loads. Anti-corrosive body for long service life exceeding 10 years.
High-Speed Cutting Blades
Hardened alloy steel rotary blades with 6 rotating + 2 stationary cutters for efficient, uniform size reduction every cycle.
Adjustable Mesh Screen
Interchangeable 8mm and 10mm mesh screens let you control the output particle size based on your downstream process requirements.
Safety Guards Included
All models include full safety enclosures, emergency stop, and overload protection to meet industrial safety requirements.
Low Noise & Vibration
Balanced rotor design and vibration-damped base ensure smooth, quiet operation suitable for 24-hour duty cycles.
Easy Maintenance
Quick-access blade chamber and simple lubrication points minimise downtime. Spare blades and screens available off-the-shelf.
Plastic Types We Process
Our grinder machines handle all major thermoplastic types including post-consumer and industrial scrap.
PVC
Polyvinyl Chloride
HDPE
High Density Polyethylene
LDPE
Low Density Polyethylene
PET
Polyethylene Terephthalate
PP
Polypropylene
ABS
Acrylonitrile Butadiene Styrene
Nylon
Polyamide
HIPS
High Impact Polystyrene
PC
Polycarbonate
BOPP
Biaxially Oriented PP
PMMA
Acrylic
EVA
Ethylene Vinyl Acetate
Choose Your Grinder Model
From light-duty 10-inch machines to heavy industrial 30-inch grinders. Each model is available with custom configurations.
10 Inch Plastic Scrap Grinder Machine
~40–80 kg/hr12 Inch Plastic Grinding Machine
~80–120 kg/hr14 Inch Scrap Grinding Machine
~120–180 kg/hr16 Inch Industrial Scrap Grinder Machine
~200–300 kg/hr18 Inch Plastic Scrap Crusher Machine
~300–400 kg/hr20 Inch Scrap Grinder Machine
~400–500 kg/hr22 Inch Heavy Duty Plastic Shredder Machine
~450–550 kg/hr24 Inch Industrial Plastic Grinding Machine
~500–600 kg/hr30 Inch Heavy Industrial Scrap Crushing Machine
~600+ kg/hrComplete Specification Table
Detailed technical data for all 9 plastic scrap grinder machine models. All dimensions in mm, weight in kg.
| Model | Cutting Chamber (mm) | Blades (Rot / Stat) | Mesh Size | Motor (kW / HP) | Dimensions L×W×H (mm) | Weight (kg) | Max Cut Thickness |
|---|---|---|---|---|---|---|---|
| 10 Inch | 300 × 253 | 6 / 2 | 8 mm | 2.23 / 3 HP | 585 × 656 × 1300 | 200 | 7–8 mm |
| 12 Inch | 358 × 310 | 6 / 2 | 8 mm | 3.7 / 5 HP | 990 × 705 × 1400 | 300 | 7–8 mm |
| 14 Inch | 380 × 364 | 6 / 2 | 8 mm | 3.7 / 5 HP | 990 × 705 × 1400 | 400–450 | 7–8 mm |
| 16 Inch | 430 × 416 | 6 / 2 | 10 mm | 3.7 / 7.5 HP | 1270 × 991 × 1525 | 500–550 | 8–9 mm |
| 18 Inch | 430 × 416 | 6 / 2 | 10 mm | 14.9 / 20 HP | 1270 × 1050 × 1676 | 800 | 8–9 mm |
| 20 Inch | 471 × 516 | 6 / 2 | 10 mm | 18.6 / 25 HP | 1270 × 1143 × 1650 | 900–1000 | 9–10 mm |
| 22 Inch | 497 × 565 | 6 / 2 | 10 mm | 22.3 / 30 HP | 1320 × 1521 × 1700 | 1000 | 9–10 mm |
| 24 Inch | 572 × 615 | 6 / 4 | 10 mm | 22.3–30 / 29.8–40 HP | 1524 × 1498 × 1828 | 1000–1200 | 9–10 mm |
| 30 Inch | 572 × 615 | 6 / 4 | 10 mm | 22.3–30 / 29.8–40 HP | 1524 × 1498 × 1828 | 1000–1200 | 9–10 mm |
Applications & Use Cases
Our plastic scrap grinder machines are used across a wide range of industries and plastic processing operations.
Plastic Recycling Plants
Grind post-consumer plastic bottles, containers and film into reusable flakes and granules for re-processing.
Injection Moulding Units
Recycle runner scrap, sprues, and rejected mouldings inline for immediate regrind and re-use in the moulding process.
Pipe & Profile Manufacturers
Grind PVC, HDPE, and PP pipe offcuts and defective profiles back into raw material for extrusion.
Blow Moulding Plants
Process blow moulding flash, rejected bottles, and drums. Suitable for HDPE, PET and PP scrap from blow moulding lines.
Film & Packaging
Shred LDPE, BOPP, and multi-layer film scrap from packaging lines for compacting and recycling.
Scrap Yards & Traders
Volume-reduce mixed plastic scrap from collection to improve transport efficiency and resale value.
Thermoforming Units
Grind thermoformed trays, cups, and PET sheet trimmings for recycling back into sheet extrusion lines.
EEE Plastic Recycling
Process ABS, PC, HIPS housings from electronic equipment recycling for responsible material recovery.
PAN-INDIA AVAILABILITY
Plastic Scrap Grinder Service Coverage Across India
Don't see your city? We deliver pan-India.
Frequently Asked Questions
Our plastic scrap grinder machines process all major thermoplastic types including PVC, HDPE, LDPE, PET, PP, ABS, Nylon, HIPS, PC, BOPP, and EVA. Both rigid and semi-rigid plastic scraps can be handled. Contact us if you have a specific material requirement.
Prices start from approximately Rs 65,000 for the 10-inch model and go up to Rs 5,00,000 for heavy-duty 24–30 inch industrial models. The price depends on blade size, motor capacity, and customisation. We offer factory-direct pricing from Rajkot — contact us for an exact quotation.
Capacity depends on model size and plastic type. The 10-inch model processes approximately 40–80 kg/hr, while the 30-inch heavy-duty model can handle 600+ kg/hr. Actual throughput varies based on material thickness, hardness, and feed consistency.
Yes. All Seaways Machinery plastic scrap grinders come with a 1-year manufacturer warranty covering manufacturing defects. We provide after-sales support, spare blades, screens, and bearings are available off-the-shelf from our Rajkot facility. Pan-India service support is available.
The 10-inch model (300×253mm chamber, 3 HP) is suited for small-scale operations, grinding up to 80 kg/hr of light plastic scrap. The 30-inch model (572×615mm chamber, up to 40 HP) is a heavy industrial machine capable of 600+ kg/hr for drums, crates, large pipes, and thick-walled containers. Choose based on your required throughput and material type.
Yes. We offer customised blade configurations, mesh screen sizes, motor ratings, hopper designs, and noise enclosures based on specific production requirements. Contact our technical team with your material type, thickness, and required output capacity for a tailored recommendation.
