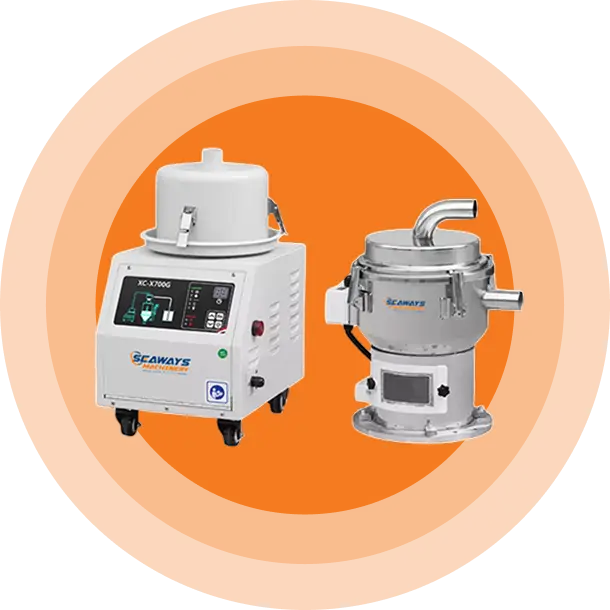

Hopper Loader Manufacturer in India

A hopper loader is an automated material handling device that conveys plastic granules, regrind or masterbatch from a storage source (bag, drum, silo, or hopper dryer) to the hopper of an injection moulding machine, extruder or blow moulder. It uses vacuum suction through a flexible hose to lift material 5-30 metres horizontally or vertically. Hopper loaders eliminate manual feeding, reduce contamination, improve production consistency, and free up operators for higher-value work.

Seaways Machinery is the best established Indian hopper loader manufacturer in India. Seaways manufactures hopper loaders from 0.5 HP standalone units to large multi-station centralized systems, supplying injection moulders, extrusion lines and recyclers across India. The right choice of hopper loader depends on number of machines, plant layout, material variety and budget.

Hopper loader prices in India range from ₹49,000 for small 0.5 HP standalone units to ₹8+ lakh for large centralized multi-station hopper loader systems serving 12+ injection moulding machines. A typical separate vacuum hopper loader for a single 100-200 ton injection moulding machine costs ₹49,000-1.2 lakh. Multi-station hopper loader systems serving 4-8 machines typically cost ₹1.8-4.5 lakh including pipework, control panel and installation.

A hopper loader transports plastic granules from a source to the processing machine's hopper using vacuum suction, it moves material. A hopper dryer removes moisture from plastic granules using hot air circulation, it conditions material. Both are auxiliary equipment for plastic processing but serve different functions. A typical setup uses both - hopper dryer dries the granules, then hopper loader transfers the dried granules to the injection moulding machine.

Multi-station hopper loaders use one central vacuum source to feed multiple loading stations across several machines, cost-effective for plants with 4-12+ machines using similar materials, with lower per-machine cost and reduced electrical load. Separate vacuum hopper loaders have a dedicated vacuum motor per loader, offering independent operation, simpler installation, easier material changeovers, and better suitability for spread-out plant layouts or plants running different materials per machine.

Hopper loader capacity should match or exceed your injection moulding machine's material consumption rate. Typical sizing: 0.5-1 HP for machines consuming up to 30 kg/hr, 1.5-3 HP for 30-100 kg/hr, 3-5 HP for 100-300 kg/hr, and 5+ HP or centralized multi-station systems for higher consumption. Also consider transport distance longer hose runs need higher vacuum capacity. Add a 20-30% safety margin to base capacity calculation.

Standard hopper loaders transport plastic granules 5-30 metres from source to machine including both horizontal hose run and vertical lift. Vertical lift is more demanding than horizontal distance; 1 metre vertical roughly equals 2-3 metres horizontal in vacuum capacity terms. For longer distances (30m+), staged loading or higher-power vacuum motors are required. Hose diameter (38mm, 50mm, 76mm) also affects maximum transport distance.

Yes, hopper loaders can transport regrind material from scrap grinders to processing machines this is one of the most common applications in plastic recycling and in-house material reuse. For regrind handling, choose larger hose diameter (50mm or 76mm), larger separator/filter, and slightly higher vacuum capacity to account for the irregular shape and lower density of regrind vs virgin granules. Dust filtration becomes especially important.

Yes. Our factory engineers travel from Rajkot to your site for hopper loader installation, particularly for multi-station systems which need careful pipework layout planning. Standalone separate vacuum hopper loaders are largely plug-and-play but we still recommend our team commissions the first hopper loader unit and trains your maintenance staff. Coverage spans Ahmedabad, Mumbai, Pune, Delhi NCR, Hyderabad, Bangalore, Chennai, Indore and other major industrial cities.

Yes. Beyond standard separate vacuum and multi-station hopper loader configurations, we manufacture custom hopper loaders for special requirements including dust-sensitive applications (electronic-grade plastics), pharma-grade clean hopper loader configurations, very long-distance transport setups, integrated drying-loading hopper loader combos, and custom multi-material hopper loader loading sequences. Lead time for custom hopper loader builds is typically 4-6 weeks from order confirmation.
