Direct Manufacturer
Volumetric Dosers
- 1 Year Warranty, Made in India, PLC Touchscreen Controller, Stainless steel screw
Price Range (Ex-Factory, Rajkot)
₹75,000.00
Price varies by model size & motor capacity. Contact us for exact quote.
- 10+ Years Manufacturing
- Pan-India Delivery
- After-Sales Support
- Spare Parts Available
- 10+ Years Manufacturing
- Pan-India Delivery
- After-Sales Support
- Spare Parts Available
Volumetric Doser Features
Engineered for precise, low-maintenance color and additive dosing. Comes with high-accuracy stepping motor, smart PLC control & a modular, easy-clean design.
High-Accuracy Stepping Motor
A high-precision hybrid stepping motor delivers accurate measurement across a wide output range for consistent dosing.
Maintenance-Free
The motor drives directly without a gearbox, giving long service life and maintenance-free operation.
PLC Touchscreen Control
A PLC touchscreen controller offers higher control accuracy, easy operation, and storage for 50 formula recipes with instant booting.
Modular Screw & Sleeve
A modular, detachable structural design enables quick replacement of the screw and sleeve, and the metering part removes from the base as a whole without material leakage.
Durable & Easy to Clean
A SUS304 stainless-steel screw ensures durability, a base-side window allows easy material observation, and a mandatory cleaning function speeds masterbatch changes.
Recoverable Memory
The doser remembers its current running mode, is unaffected by power cuts, and instantly recovers when power returns, with an optional low-level material-shortage sensor.
Materials the Doser Handles
Precisely meters masterbatch, additives, and granules into the main material stream.
PVC
Polyvinyl Chloride
HDPE
High Density Polyethylene
LDPE
Low Density Polyethylene
PET
Polyethylene Terephthalate
PP
Polypropylene
ABS
Acrylonitrile Butadiene Styrene
Nylon
Polyamide
HIPS
High Impact Polystyrene
PC
Polycarbonate
BOPP
Biaxially Oriented PP
PMMA
Acrylic
EVA
Ethylene Vinyl Acetate
Single & Double Color Units
Choose Your Volumetric Doser Configuration
XCM-12 Volumetric Doser (Single Color)
0.05-20 kg/hrXCM-16 Volumetric Doser Machine (Single Color)

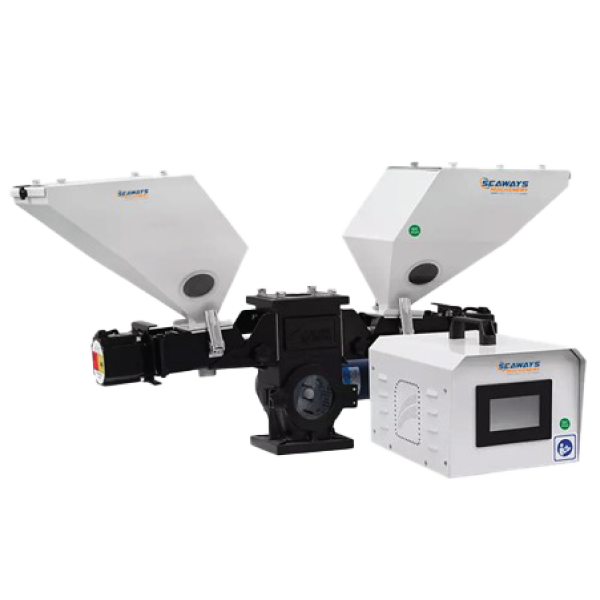

0.5-64 kg/hrXCM Volumetric Dosing Machine (Double Color)
Specification Table
Volumetric Doser Technical Specifications
| MODEL | XCM-12 | SINGLE COLOR UNIT | XCM-16 |
|---|---|---|---|
| Motor (HP/kw) (KW) | 0.3 | – | 0.3 |
| Motor speed (r.p.m) | 1.8-300 | – | 1.8-300 |
| Mixing power (W) | 60-90 | – | 60-90 |
| Screw outer diameter (mm) | 12/16/20/25 | – | 12/16/20/25 |
| Output (kg/hr) | 0.05-20 | – | 0.5-64 |
| Material storage barrel (L) | 13 | – | 13 |
| Main material hopper | OPTIONAL | – | OPTIONAL |
| Mixer | OPTIONAL | – | OPTIONAL |
| Approx.netweight (KG) | 25 | – | 25 |
| Dimensions | SMALL BASE | SMALL BASS MIXING | LARGE BASE MIXING |
| H(mm) | 430 | 530 | 600 |
| W(mm) | 560 | – | 560 |
| D(mm) | 300 | – | 300 |
| Small base size (mm) | 150×120×95×100×52×M8×180×86×R17 | – | 150×120×95×100×52×M8×180×86×R17 |
| Small base maxing size | 150×120×95×100×52×M8×280×86×R17 | – | 150×120×95×100×52×M8×280×86×R17 |
| Large base size (mm) | 230×180×130×**×90×**×300×110×R8.5X** | – | 230×180×130×**×90×**×300×110×R8.5X** |
| Large base mixing size | 230×180×130×**×90×**×350×110×R8.5X** | – | 230×180×130×**×90×**×350×110×R8.5X** |
| MODEL | – | DOUBLE COLOR UNIT XCM-**/**D2 | – | – |
|---|---|---|---|---|
| Motor (HP/kw) (KW) | – | 0.3X2 | – | – |
| Motor speed (r.p.m) | – | 1.8-300 | – | – |
| Mixing power (W) | – | 60-90 | – | – |
| Screw outer diameter (mm) | – | 12/16/20/25 | – | – |
| Output (kg/hr) | – | ***** | – | – |
| Material storage barrel (L) | – | 13 | – | – |
| Main material hopper | – | OPTIONAL | – | – |
| Mixer | – | OPTIONAL | – | – |
| Approx.netweight (KG) | – | 45 | – | – |
| Dimensions | SMALL BASE | SMALL BASS MIXING | LARGE BASE | LARGE BASE MIXING |
| H(mm) | 430 | 530 | 550 | 600 |
| W(mm) | 1010 | 1010 | 1090 | 1090 |
| D(mm) | – | 300 | – | – |
| Small base size (mm) | – | 150×120×95×100×52×M8×180×86×R17 | – | – |
| Small base maxing size | – | 150×120×95×100×52×M8×280×86×R17 | – | – |
| Large base size (mm) | – | 230×180×130×**×90×**×300×110×R8.5X** | – | – |
| Large base mixing size | – | 230×180×130×**×90×**×350×110×R8.5X** | – | – |
Applications & Use Cases
The Volumetric Dosers suit any operation needing precise, repeatable color or additive dosing.
Injection Moulding Plants
Meter masterbatch precisely into the feed for consistent color.
Extrusion Lines
Dose additives and color accurately into continuous extrusion.
Blow Moulding Units
Add precise color and additive ratios for uniform products.
Masterbatch Dosing
Single or double-color dosing directly at the machine throat.
Compounding
Accurate additive dosing into base resin.
Cost-Control Operations
Reduce masterbatch waste with precise volumetric metering.
PAN-INDIA AVAILABILITY
Our Coverage Across India
Don't see your city? We deliver pan-India.
Frequently Asked Questions
A volumetric doser is used to automatically and accurately feed a set ratio of masterbatch, additives, or colorants into the main plastic material stream during injection moulding, extrusion, or blow moulding. It eliminates manual weighing, reduces material waste, and ensures consistent colour and quality in every production cycle.
Pricing starts at ₹75,000 and varies by configuration, screw diameter, base type, and optional features. Request a configuration-specific quote for an exact price.
The XCM-12 doses 0.05–20 kg/hr and the XCM-16 doses 0.5–64 kg/hr, with selectable screw diameters of 12, 16, 20, or 25 mm to suit your dosing rate.
Single-color units (XCM-12 / XCM-16) dose one component, while the double-color unit (XCM D2) uses two dosing units to meter two components simultaneously.
It uses a high-accuracy hybrid stepping motor and a PLC touchscreen controller with memory for 50 recipes and instant booting, giving precise, repeatable, easy control.
Yes. Volumetric dosers are designed to mount directly onto the throat of injection moulding machines, extruders, and blow moulding machines. The modular base design, available in standard or enlarged configurations, accommodates different machine throat sizes and layouts.
Yes. A modular design lets you quickly replace the screw and sleeve, the metering part removes as a whole without leakage, and a mandatory cleaning function speeds masterbatch changeover.
The doser remembers its current running mode, is unaffected by power cuts, and instantly recovers when power returns.
Yes. We provide pan-India installation, operator training, spare-parts dispatch, and on-site service through our dealer network and factory engineers, backed by 10+ years of experience.
