What is a vacuum hopper loader used for?

A vacuum hopper loader is used to automatically transfer plastic granules, regrind or masterbatch from a storage drum into the feeding hopper of an injection moulding, extrusion or blow moulding machine — eliminating manual loading and preventing material contamination.

What is the difference between separate and integral hopper loaders?

In a separate vacuum hopper loader, the blower motor and the receiving hopper are independent units connected by a hose, making it more flexible and easier to service. In an integral loader, both are built as a single unit mounted directly on the machine throat.

What is the conveying capacity of Seaways’ vacuum hopper loader?

Our three models deliver 310 Kg/h (SMI-700G), 450 Kg/h (SMI-810G) and 500 Kg/h (SMI-810G2). Loading distance ranges from 4 m to 5 m, depending on the model.

Which one should I choose – carbon brush or induction motor?

Choose the carbon-brush motor (SMI-700G) for light to medium-duty production and clean virgin material. Choose the induction motor (SMI-810G / 810G2) for continuous operation, dusty regrind, or larger throughput requirements.

Can the hopper vacuum loader handle regrind material?

Yes. All Seaways models handle virgin granules, regrind, masterbatch and dried material. The 810G series is preferred for regrind because of its stronger induction blower and automatic dust-removal system.

Do you provide installation and after-sales support?

Yes, we provide pan-India installation, operator training, support and on-site service through our dealer network and factory engineers in Rajkot.

Separate Vacuum Hopper Loaders - Image 2

Direct Manufacturer

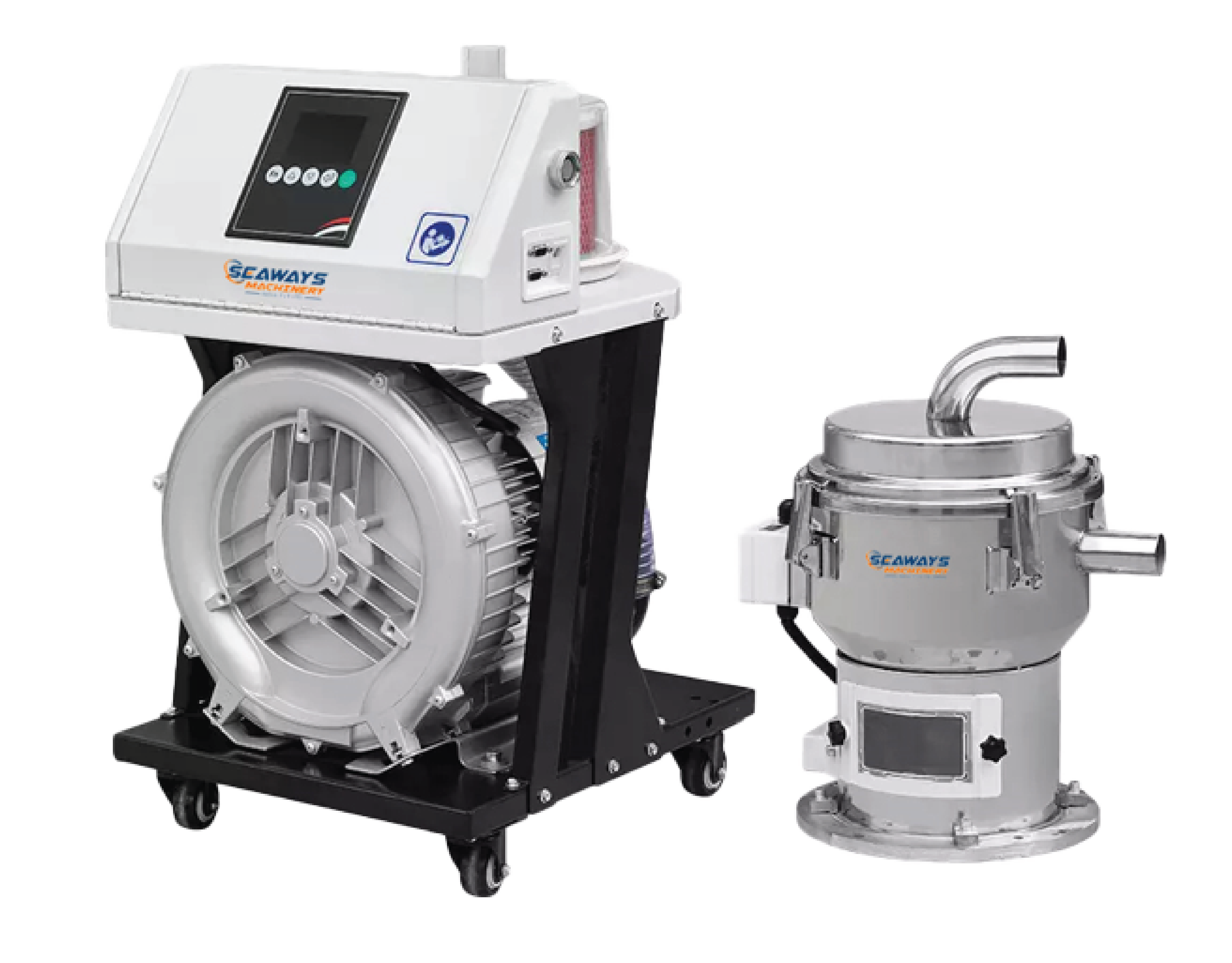

Separate Vacuum Hopper Loaders

Price Range (Ex-Factory, Rajkot)

₹49,000.00

Price varies by model size & motor capacity. Contact us for exact quote.

The Seaways Separate Vacuum Hopper Loaders feature a detachable blower-and-hopper design for clean, dust-free plastic material conveying. Light, durable, and easy to install, they deliver strong suction with microcomputer control, individual filter cleaning, and a Euro-type stainless hopper. Available in three models (310–500 Kg/h) with carbon-brush and induction-motor options to suit new-material feeding needs.

Why Choose Seaways

Separate Vacuum Hopper Loader Features

Engineered for clean, dust-free, automated single-machine feeding, detachable design, smart control, and reliable filtration.

Detachable Blower & Hopper

A separate blower-and-hopper design is easy to install, light to handle, and durable, simplifying setup and servicing.

Strong, Efficient Suction

A high-speed carbon-brush motor (or low-noise induction blower on higher models) delivers strong suction ideal for conveying new materials.

Individual Filter Cleaning

An independent filter device, with a transparent shell on the 810 series, makes dust accumulation easy to observe and clean in time.

Fully Automatic Control

A microcomputer / LCD controller with adjustable parameters offers easy operation, plus overload and material-shortage alarms with automatic dust removal.

Euro-Type Stainless Hopper

All models ship with a Euro-type stainless hopper controlled by a magnetic reed for sensitive, stable, contamination-free running.

Smart Valves & Automation

The 810 series adds an independent material-cutting suction box, proportional valve, and a vacuum-breaking valve control, with an optional communication function.

Compatible Materials

Materials the Loader Handles

Designed for conveying new plastic granules and raw materials cleanly to your machine hopper or dryer.

PVC

Polyvinyl Chloride

HDPE

High Density Polyethylene

LDPE

Low Density Polyethylene

PET

Polyethylene Terephthalate

PP

Polypropylene

ABS

Acrylonitrile Butadiene Styrene

Nylon

Polyamide

HIPS

High Impact Polystyrene

PC

Polycarbonate

BOPP

Biaxially Oriented PP

PMMA

Acrylic

EVA

Ethylene Vinyl Acetate

3 Models Available

Choose Your Separate Vacuum Hopper Loader Model

From the compact carbon-brush SMI-700G to the induction-motor SMI-810G series. Every model ships with a Euro-type stainless hopper and is available with custom configurations.

XC-X700G (SMI-700G)

310 Kg/h

Motor Type Carbon Brush

Specification 1.1 KW / 1.3 HP

Loading Distance 4 m

Static Wind Pressure 1550 mm/H₂O

Reservoir Volume 7.5 L

Conveying Tube Inner Dia Φ38 mm

Approx. Net Weight 26 Kg

Enquire for Price

XC-X810G (SMI-810G)

450 Kg/h

Motor Type Induction

Specification 1.1 KW / 1.5 HP

Loading Distance 4 m

Static Wind Pressure 1800 mm/H₂O

Reservoir Volume 7.5 L

Conveying Tube Inner Dia Φ38 mm

Approx. Net Weight 48 Kg

Enquire for Price

XC-X810G2 (SMI-810G)

500 Kg/h

Motor Type Induction

Specification 1.1 KW / 2 HP

Loading Distance 5 m

Static Wind Pressure 2400 mm/H₂O

Reservoir Volume 7.5 L

Conveying Tube Inner Dia Φ38 mm

Approx. Net Weight 48.5 Kg

Enquire for Price

Specification Table

Separate Vacuum Hopper Loader Technical Specifications

Full technical specification across all three models. Frame and hopper dimensions in mm, weight in Kg.

MODEL	XC-X700G	XC-X810G	XC-X810G2
Type	CARBON BRUSH	INDUCTION	INDUCTION
Specification	1.1KW/1.3HP	1.1KW/1.5HP	1.1KW/2HP
Conveying Capacity (Kg/h)	310	450	500
Loading Distance (m)	4	4	5
Static Wind Pressure (mm/H₂O)	1550	1800	2400
Reservoir Volume (L)	7.5	7.5	7.5
Conveying Tube Inner Diameter (mm)	Φ38	Φ38	Φ38
Specification Of The Attached Hoses (mm)	$38MMX8M 1PC	$38MMX8M 1PC	$38MMX10M 1PC
Main Frame	37×30×56	440×370×670	440×370×670
Hopper	38×28×45	38×28×45	38×28×45
Approx. Net Weight (Kg)	26	48	48.5

Industries Served

Applications & Use Cases

The Separate Vacuum Hopper Loaders suit clean, automated single-machine feeding across plastic-processing operations.

Injection Moulding Shops

Automatic, dust-free feeding for moulding lines.

Plastic Processing Units

Clean conveying of new granules and raw material.

Drying & Dehumidifying Setups

Feeds hopper dryers for moisture-sensitive plastics.

Small & Mid-Scale Facilities

Compact, detachable design where space is limited.

Masterbatch & Compounding

Contamination-free conveying of granules and masterbatch.

New-Material Feeding

Optimized suction for fresh, virgin material handling.

PAN-INDIA AVAILABILITY

Our Coverage Across India

Direct factory dispatch from our Rajkot facility to 13 cities across 7 states. Installation, training, and after-sales support included nationwide.

Home state direct dispatch from our Rajkot HQ

Industrial corridor fast delivery to Mumbai and Pune

Serving Delhi NCR and Rajasthan industrial belts

Coverage across Tamil Nadu and Telangana

Don't see your city? We deliver pan-India.

Common Questions

Frequently Asked Questions

It is an automatic vacuum loader that conveys plastic granules to a machine hopper or dryer. Its detachable blower-and-hopper design makes installation, handling, and dust cleaning simple, ideal for clean single-machine feeding.

Pricing is available on request and varies by model, motor type, and optional features. Request a model-specific quote for an exact price.

Three models, the carbon-brush SMI-700G (310 Kg/h) and the induction SMI-810G series (450 and 500 Kg/h), with loading distances of 4–5 m and a 7.5 L reservoir.

The SMI-700G uses a compact, strong-suction carbon-brush motor. The SMI-810G uses a low-noise, durable induction blower, adds a transparent-shell filter, LCD control, and independent valve control for higher capacity and automation.

Yes. Each model ships with a Euro-type stainless hopper and an individual filter device for easy dust cleaning, ensuring clean, contamination-free conveying.

Yes. Fully automatic microcomputer control includes motor overload protection, material-shortage alarms, and automatic dust removal.

Yes. The detachable blower-and-hopper design is light and durable, making the unit quick and easy to install and service.

Yes. We provide pan-India installation, operator training, spare-parts dispatch, and on-site service through our dealer network and factory engineers, backed by 10+ years of experience.

Get the Best Price for Plastic Processing Machines

Tell us your plastic type, required capacity, and preferred model size. Our technical team will respond within 4 business hours with pricing, lead time, and a technical datasheet.

Factory-direct pricing — no middleman markup
Response within 4 business hours
Free technical consultation included
Pan-India delivery & installation support
1-year warranty on all models
GST invoice provided

Request a Quote

Your Name

Company Name

Phone / WhatsApp *

Email Address

Model Required

Plastic Type & Requirements

Separate Vacuum Hopper Loaders

Separate Vacuum Hopper Loader Features

Detachable Blower & Hopper

Strong, Efficient Suction

Individual Filter Cleaning

Fully Automatic Control

Euro-Type Stainless Hopper

Smart Valves & Automation

Materials the Loader Handles

PVC

HDPE

LDPE

PET

PP

ABS

Nylon

HIPS

PC

BOPP

PMMA

EVA

Choose Your Separate Vacuum Hopper Loader Model

XC-X700G (SMI-700G)

XC-X810G (SMI-810G)

XC-X810G2 (SMI-810G)

Separate Vacuum Hopper Loader Technical Specifications

Applications & Use Cases

Injection Moulding Shops

Plastic Processing Units

Drying & Dehumidifying Setups

Small & Mid-Scale Facilities

Masterbatch & Compounding

New-Material Feeding

PAN-INDIA AVAILABILITY

Our Coverage Across India

Don't see your city? We deliver pan-India.

Frequently Asked Questions

Get the Best Price for Plastic Processing Machines

Request a Quote
