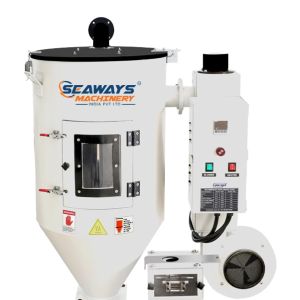

Non Insulated Hopper Dryer
- 1 Year Warranty, 12-600 KG Models, Made in India, Saves 30%-80% Energy
Price Range (Ex-Factory, Rajkot)
₹29,500.00
Price varies by model size & motor capacity. Contact us for exact quote.
- 10+ Years Manufacturing
- Pan-India Delivery
- After-Sales Support
- Spare Parts Available
- 10+ Years Manufacturing
- Pan-India Delivery
- After-Sales Support
- Spare Parts Available
Non-Insulated Hopper Dryer Features
Engineered for smart, energy-saving, uniform drying, automatic material formulas, adaptive airflow, and reliable temperature protection.
Uniform Hot-Air Diffusion
A high-performance hot-air diffusion device ensures a uniform temperature throughout the barrel, improving drying efficiency and output consistency.
High Energy Saving
Under the same working conditions, it saves 30%–80% energy compared with ordinary dryer models — cutting running costs significantly.
Built-In Material Formulas
A library of common raw-material process formulas means you simply select the material type, and the system auto-sets the drying temperature and air volume.
Heat-Preservation Modes
The system automatically adjusts air volume after the temperature is set, and enters heat-preservation when feeding stops — saving energy and preventing over-drying.
Stainless-Steel & Safe Design
A stainless-steel interior prevents contamination, while a curved heating-tube design avoids powder buildup and combustion for safe operation.
Smart Alarms & Automation
Over-temperature and low-temperature alarm protection, a 24-hour timer for automatic operation, and a communication function for remote management.
Materials the Hopper Dryer Handles
Built-in formulas cover a wide range of hygroscopic and standard plastic granules.
PVC
Polyvinyl Chloride
HDPE
High Density Polyethylene
LDPE
Low Density Polyethylene
PET
Polyethylene Terephthalate
PP
Polypropylene
ABS
Acrylonitrile Butadiene Styrene
Nylon
Polyamide
HIPS
High Impact Polystyrene
PC
Polycarbonate
BOPP
Biaxially Oriented PP
PMMA
Acrylic
EVA
Ethylene Vinyl Acetate
10 Models Available
Choose Your Non-Insulated Hopper Dryer Model
XC-G12KG-ECH
12 KGXC-G25KG-ECH
25 KGXC-G50KG-ECH
50 KGXC-G75KG-ECH
75 KGXC-G100KG-ECH
100 KGXC-G150KG-ECH
150 KGXC-G200KG-ECH
200 KGXC-G300KG-ECH
300 KGXC-G400KG-ECH
400 KGXC-G600KG
600 KGSpecification Table
Non-Insulated Hopper Dryer Technical Specifications
| MODEL | Capacity(kg) | Electric heating (KW) | Fan(W) | Dimensions (mm) H*H2*H3*H4*∅A*W | Base size W1*∅B*W2*∅E*∅D*∅C(mm) | Net weight (kg) |
|---|---|---|---|---|---|---|
| XC-G12KG-ECH | 12 | 2.3 | 75 | 863x322x448x107x327x677 | 108x107x42.5×73.5x130x104x10 | twenty two |
| XC-G25KG-ECH | 25 | 3.5 | 135 | 978x399x443x159x387x726 | 150x159x61.5x99x170x140x12 | 34 |
| XC-G50KG-ECH | 50 | 5 | 135 | 1153x474x543x157x462x835 | 158x157x74x113x199x160x12 | 45 |
| XC-G75KG-ECH | 75 | 6 | 180 | 1254x470x648x157x535x905 | 158x157x74x113x199x160x12 | 56 |
| XC-G100KG-ECH | 100 | 7 | 215 | 1320x536x648x173x602x1006 | 177x173x81x134x230x189.5×12 | 68 |
| XC-G150KG-ECH | 150 | 10 | 320 | 1537x525x848x173x640x1077 | 177x173x81x134x230x189.5×12 | 78 |
| XC-G200KG-ECH | 200 | 12 | 320 | 1725x607x933x192x747x1229 | 230x192x110x148.5x250x210x14 | 110 |
| XC-G300KG-ECH | 300 | 15 | 320 | 1899x656x1058x194x815x1273 | 230x194x110x180.3x295x255x14 | 150 |
| XC-G400KG-ECH | 400 | 18 | 410 | 1936x713x1038x205x900x1351 | 280x205x119x180.3x310x255x16 | 170 |
| XC-G600KG | 600 | twenty four | 1030 | 2355x815x1298x245x1050x1557 | 280x245x135x198x320x280x16 | 200 |
Industries Served
The Non-Insulated Hopper Dryer suits any plastic-processing operation needing efficient, smart drying.
Injection Moulding Plants
Auto-dry hygroscopic resins before moulding using built-in formulas.
Extrusion Lines
Maintain consistent moisture-free granules for stable extrusion.
Blow Moulding Units
Pre-dry PET and resins for clear, strong products.
PET & Engineering Plastics
Reliable drying for moisture-sensitive materials.
Energy-Conscious Facilities
Cut drying energy use by 30%-80% versus ordinary dryers.
Online & Offline Setups
Mount machine-side or run as a standalone drying station.
PAN-INDIA AVAILABILITY
Our Coverage Across India
Don't see your city? We deliver pan-India.
Frequently Asked Questions
It heats and dries plastic granules to remove moisture before moulding or extrusion, using a high-performance hot-air diffusion system with built-in material formulas for automatic, efficient drying.
Pricing starts at ₹29,500 and varies by model, heating capacity, and customization. Request a model-specific quote for an exact price.
Under the same working conditions, it saves 30%–80% energy compared with ordinary dryer models, thanks to adaptive airflow and automatic heat-preservation.
Ten models from 12 kg (XC-G12KG-ECH) up to 600 kg (XC-G600KG), with electric heating from 2.3 KW to 24 KW.
No. The dryer has built-in formulas for common raw materials — you simply select the material type and the system automatically sets the drying temperature and air volume.
The dryer automatically enters a heat-preservation state, saving energy, preventing over-drying, and keeping dry material ready whenever you need it.
Yes. It includes over-temperature and low-temperature alarm protection, a 24-hour timer for automatic operation, and a communication function for remote management.
Yes. We provide pan-India installation, operator training, spare-parts dispatch, and on-site service through our dealer network and factory engineers, backed by 10+ years of experience.
