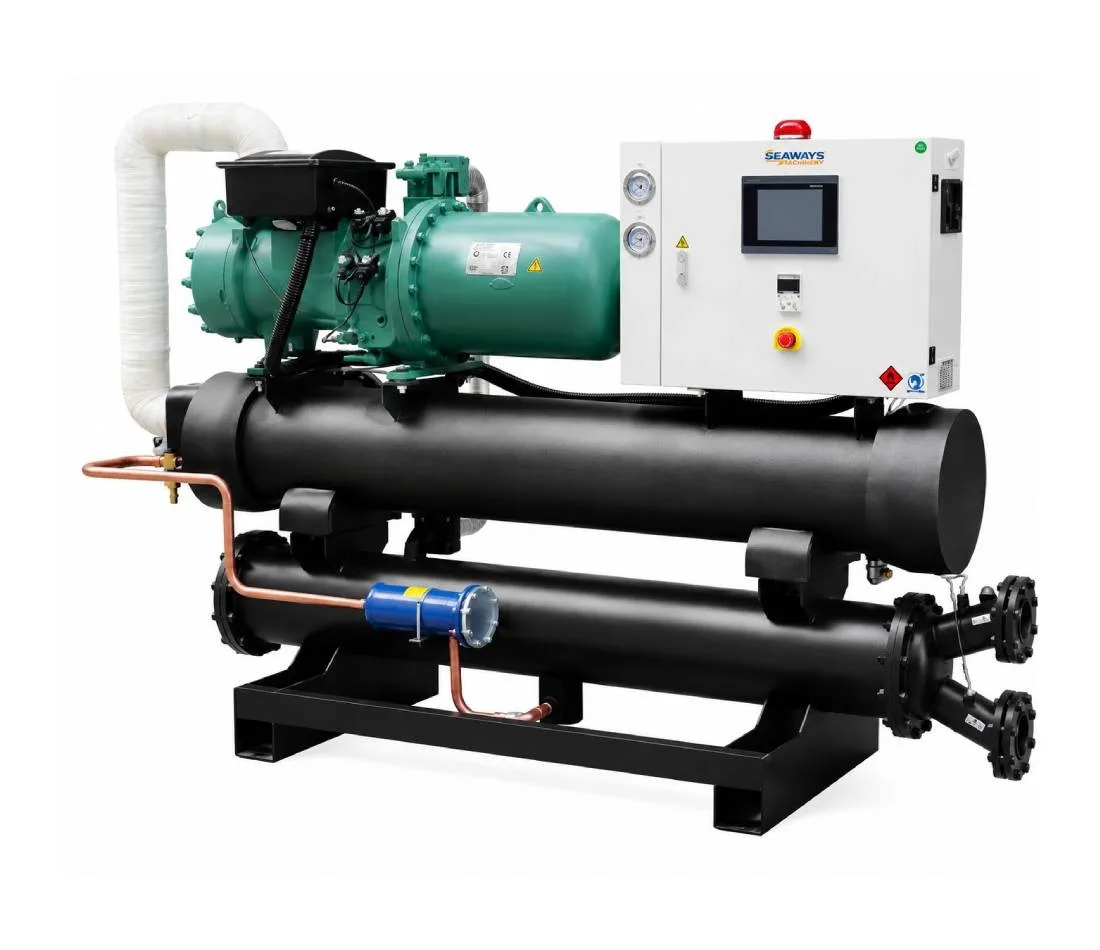

Industrial Chiller for Injection Moulding Machine
Seaways manufactures industrial chillers designed for injection moulding machines, plastic processing and other applications that require stable process cooling. A chiller for injection moulding machine circulates controlled-temperature water through mould cooling circuits and other suitable cooling systems to remove process heat and maintain consistent operating conditions.
Our air-cooled and water-cooled industrial chillers are available in multiple capacities to suit different machine sizes and cooling loads. With direct-cooling technology, SS304 pumps and branded compressors from Tecumseh, Copeland and Danfoss, Seaways provides reliable cooling equipment for plastic processors across India.
- Water-cooled and air-cooled models
- Tecumseh, Copeland or Danfoss compressor
- SS304 pump, direct-cooling design
- 4 models: 2.5TR, 5.0TR, 7.5TR, EN-2.5
Mould water set point
range +10 °C to +15 °C
10+ years manufacturing
Factory-direct from Rajkot, Gujarat
1-year warranty
Pan-India delivery and spares
What is a Chiller For Injection Moulding Machine?
A chiller for injection moulding machine is an industrial refrigeration system that removes heat from circulating water and supplies the cooled water to the required process circuit.
During injection moulding, hot plastic enters the mould cavity and transfers heat to the mould. Cooling channels inside the mould circulate water to remove this heat so the part can reach the required condition for ejection. The returning water is then cooled again inside the chiller before being recirculated.
A controlled cooling system can help reduce variation caused by changing ambient conditions and inconsistent cooling-water temperatures. Mould temperature and cooling stability are important process variables because they influence cooling time, dimensional consistency, surface finish and overall production repeatability.
Seaways industrial chillers currently provide a listed process-water range of +10°C to +15°C, although the appropriate temperature for a particular moulding process depends on the material, mould design and application.
Signs Your Moulding Machine Needs a Chiller
If your production process experiences inconsistent cooling, excessive cycle times or temperature-related quality problems, the cooling system should be evaluated.
Long cycle time
Parts need extra cooling seconds before ejection, so output per shift drops.
Warpage and sink marks
Uneven mould temperature makes parts shrink unevenly, bend or show dents.
Summer rejections
Quality slips every afternoon and every hot month as tower water warms up.
Hot hydraulic oil
Oil runs hot, seals wear faster and the machine trips on temperature alarms.
Blocked mould channels
Open tower water carries dust and scale into cooling lines. A closed chiller loop stays cleaner.
Dimensions drift
Tight-tolerance parts go out of size between the morning and night shift.
How Does a Chiller for Injection Moulding Machine Work?
The working principle of an industrial chiller for injection moulding is based on continuous heat removal and water circulation.
Cold water goes out
The SS304 pump sends chilled water from the tank to the mould and oil cooler.
Heat is picked up
Water flows through the mould channels and absorbs heat from the molten plastic.
Refrigerant removes it
Back in the chiller, the evaporator and compressor pull that heat out of the water.
Heat leaves the plant
The condenser releases it to air (air-cooled) or to tower water (water-cooled).
Why Choose Seaways Chillers for Injection Moulding?
Seaways Machinery designs industrial cooling equipment for plastic processing applications, with models intended for different cooling requirements and machine capacities.
Direct-cooling technology
Reaches the set temperature quickly, so the machine is ready to run sooner.
Branded compressors
Tecumseh, Copeland or Danfoss, with service support available across India.
SS304 stainless pump
Resists rust, keeping mould channels free from corrosion particles.
Smart power regulation
Adjusts to the actual cooling load to keep electricity use in check.
Four models, 350 L to 1100 L
Choose 2.5TR, 5.0TR, 7.5TR or the EN-2.5 industrial variant.
Consistent cooling
Holds process water at +10 °C to +15 °C whatever the weather outside.
Air-Cooled vs Water-Cooled Chiller for Injection Moulding
When selecting a chiller for injection moulding machine, one of the key decisions is whether an air-cooled or water-cooled configuration is suitable for your plant.
| Point | Air-cooled chiller | Water-cooled chiller |
|---|---|---|
| Needs a cooling tower? | No | Yes |
| Best for | Small to mid plants, areas with limited water | Larger plants that already run a cooling tower |
| Installation | Simpler, plug in near the machine with good ventilation | Needs tower piping |
| Efficiency in hot weather | Drops somewhat as room air gets hotter | More stable in summer |
| Heat in the shop floor | Releases warm air nearby | Heat goes out through tower water |
| Maintenance | Keep condenser fins clean | Keep tower water clean and treated |
Injection Moulding Chiller Models and Capacities
Seaways offers multiple industrial chiller models for plastic processing and injection moulding applications.
2.5TR chiller
- Tecumseh AW5535 compressor
- 2680 W, 0.5 HP SS304 pump
- Best for machines up to about 120 ton
5.0TR chiller
- Copeland 2R72 compressor
- 6100 W, 0.5 HP SS304 pump
- Best for 120 to 250 ton machines
7.5TR chiller
- Danfoss Z108 compressor
- 8250 W, 1.0 HP SS304 pump
- Best for 250 to 400 ton machines, or two smaller machines
EN-2.5 IND
- Tecumseh AW5535 compressor
- 2680 W, 0.5 HP pump, 140 L SS tank
- Industrial variant for small machines
Technical specifications
| Specification | 2.5TR | 5.0TR | 7.5TR | EN-2.5 IND |
|---|---|---|---|---|
| Compressor | Tecumseh AW5535 | Copeland 2R72 | Danfoss Z108 | Tecumseh AW5535 |
| Capacity | 350 L | 750 L | 1100 L | 8.8 kW |
| Water temperature | +10 °C to +15 °C | +10 °C to +15 °C | +10 °C to +15 °C | +10 °C to +15 °C |
| Energy consumption | 2680 W | 6100 W | 8250 W | 2680 W |
| Power supply | 380/450 W | 380/450 W | 380/450 W | 380/450 W |
| Max. current | 6.0 A | 11.0 A | 16.0 A | 5.5 A |
| SS304 pump | 0.5 HP | 0.5 HP | 1.0 HP | 0.5 HP (140 L SS tank) |
| Dimensions (H × L × W) | 49″ × 33″ × 24″ | 54″ × 54″ × 26″ | 60″ × 62″ × 32″ | 52″ × 49″ × 25″ |
| Weight | 125 kg | 210 kg | 290 kg | 145 kg |
How to Choose the Right Chiller Capacity
Choosing the correct chiller for injection moulding machine requires more than looking at machine tonnage. The chiller should be selected according to the actual heat load generated by the process and the cooling conditions required by the mould.
Output in kg per hour across all machines on the chiller.
Material. PP and HDPE need more cooling per kg than ABS or PS.
Oil cooling. Add extra capacity if the chiller also cools hydraulic oil.
Safety margin. Keep about 15 to 20 percent extra for Indian summers and future machines.
Quick rule: 1 TR of cooling handles roughly 12 to 18 kg/hr of PP or HDPE, or about 20 to 28 kg/hr of ABS or PS, for mould cooling.
Which Seaways model fits your machine (indicative, mould cooling)
| Injection moulding machine | Suggested model |
|---|---|
| Up to 120 ton | 2.5TR or EN-2.5 IND |
| 120 to 250 ton | 5.0TR |
| 250 to 400 ton | 7.5TR |
| Above 400 ton, or several machines | Multiple units or custom, sized by our engineers |
Actual size depends on shot weight, cycle time, mould design and material. Share these with us for an exact recommendation.
Applications of Injection Moulding Chillers
Injection moulding
Mould and hydraulic oil cooling for caps, containers, auto parts, furniture and household items.
Plastic extrusion
Cooling for pipe and profile tanks, calibrators, sheet rolls and film lines.
Blow moulding
Faster bottle and can cooling with steady wall thickness.
PET preform
Cold, stable water for clear preforms without haze.
Chiller solutions for injection moulding and extruder machine manufacturers
Injection moulding machine manufacturers, OEMs, dealers and system integrators often need compatible auxiliary equipment along with the main machine. Seaways can support machine manufacturers with industrial chillers matched to the application and cooling requirement.
- Chillers matched to your machine tonnage range
- Dealer and OEM pricing for regular orders
- Delivery to your customer's site with installation
- Our team handles after-sales, so your team doesn't have to
Chiller for Injection Moulding Machine Price
Seaways chillers start from ₹1,10,000 ex-factory, Rajkot. The final price depends on the selected model, capacity and configuration. For an accurate quotation, share your injection moulding machine tonnage, material, shot weight, cycle time, number of machines and required cooling-water conditions.
Model and capacity: 2.5TR, 5.0TR, 7.5TR or EN-2.5 IND
Air-cooled or water-cooled design
Motor and pump size (0.5 HP or 1.0 HP)
GST and freight to your city
Delivery location and installation needs
Frequently Asked Questions
What is a chiller for injection moulding machine?
A chiller for an injection moulding machine is an industrial cooling system that removes heat and circulates cooled water to suitable machine or mould cooling circuits. It helps maintain controlled process conditions during plastic moulding.
Why is a water chiller used in an injection molding machine?
A water chiller is used when the injection moulding process requires controlled cooling-water temperature and circulation. It can help remove process heat and maintain more consistent cooling conditions.
Which chiller is suitable for an injection moulding machine?
The suitable chiller depends on the machine and mould cooling load, number of connected machines, required water temperature, flow rate, plant conditions and whether an air-cooled or water-cooled configuration is appropriate.
What is the difference between an air-cooled and water-cooled chiller?
An air-cooled chiller rejects heat using ambient air, while a water-cooled chiller uses a water circuit for heat rejection. The better configuration depends on the plant’s infrastructure, operating environment and cooling-system requirements.
Can an industrial chiller be used for plastic extrusion machines?
Yes. Industrial chillers can be used as process-cooling equipment in plastic extrusion applications as well as injection moulding. The required capacity and configuration depend on the extrusion process and total cooling load.
Can one industrial chiller cool multiple injection moulding machines?
Yes, a centralised chiller system can be designed to serve multiple machines when the total cooling load and circulation requirements are properly calculated. The chiller capacity should be selected according to the combined process requirement.
What temperature does an injection moulding chiller provide?
Seaways’ current industrial chiller models list a process temperature range of +10°C to +15°C. The appropriate operating temperature depends on the specific application and connected equipment.
What is the difference between a chiller and a mould temperature controller?
A chiller provides the cooling source, while a mould temperature controller regulates the temperature of the fluid supplied to the mould. In some injection moulding setups, the two systems work together.
Do injection moulding machine manufacturers need an auxiliary chiller?
Where the machine or customer’s process requires controlled cooling, a chiller can be included as part of the auxiliary equipment package. Machine manufacturers, dealers and system integrators can specify the cooling requirement based on the machine and application.
How do I select the right chiller for my injection moulding machine?
Start with the total cooling load, required water temperature, water flow, number of machines, mould requirements and plant conditions. A chiller should then be selected according to the calculated process requirement rather than machine tonnage alone.
