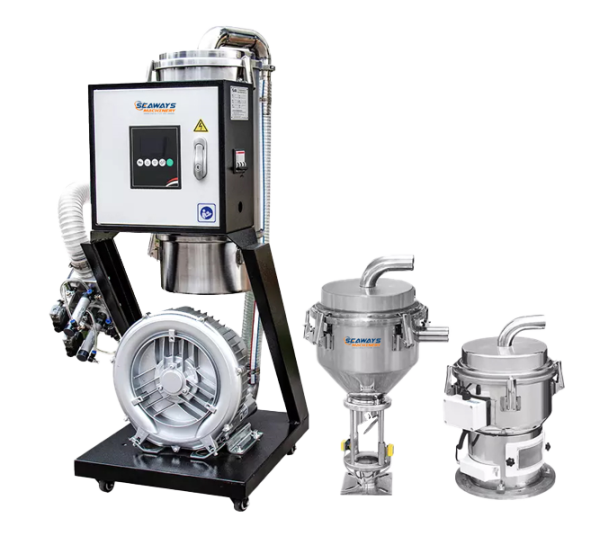

Specially developed for the loading for materials as large amount, long distance, with crushed materials and powder With multiple models, various tube and hopper sizesfor different material conditions and demands; Safety Functions as overload protection, phase sequence protection, automatic reverse running for dust removing; Industry leading LCD microcomputer controller with adjustable parameters, intuitive display and convenient operation; Unique cyclone barrel and large dust isolation and collection system adopt advanced design, easy and fast to maintain. >5HP default equipped with vacuum breaking valves to prevent frequent start and stop to prolong the service life of the motor; Whole series models default with euro type stainless hopper controlled by magnetic reed, sensitive and stable in running. Optional for communication function to realize automated management;
Technical Specification
MODEL | XCAL-1.5HP | XCAL-2HP | XCAL-3HP | XCAL-5HP | XCAL-7.5HP | XCAL-10HP | XCAL-15HP |
---|---|---|---|---|---|---|---|
TypMotor (Hp/kw) | 1.5/1.1 | 2/1.5 | 3/2.2 | 5/3.75 | 7.5/5.5 | 10/7.5 | 15/11 |
Conveying Capacity (Kg/h) | 450 | 500 | 590 | 820 | 1000 | 1300 | 1500 |
Loading Distance (m) | 5 | 5 | 5 | 5 | 6 | 6 | 6 |
Static Wind Pressure (mm/H₂O) | 2800 | 2800 | 2800 | 3200 | 4200 | 4500 | 4500 |
Storage Tank Volume (L) | 7.5 | 7.5 | 12 | 24 | 30 | 30 | 30 |
Conveying Tube Inner Diameter (mm) | Φ38 | Φ38 | Φ51 | Φ51 | Φ63 | Φ63 | Φ63 |
Specification Of The Attached Hoses (mm) | Φ38MMX8M 1PC | Φ38MMX8M 1PC | Φ51MMX10M 1PC | Φ51MMX10M 1PC | Φ63MMX12M 1PC | Φ63MMX12M 1PC | Φ63MMX12M 1PC |
Main Frame | 50X42X109 | 50X42X109 | 50X42X109 | 50X42X109 | 69X52X144 | 69X52X144 | 99X85X142 |
Hopper | 38X28X45 | 38X28X45 | 43X33X58 | 43X33X69 | 43X33X83 | 43X33X83 | 43X33X83 |
Approx. Net Weight (Kg) | 56 | 56 | 68 | 81 | 137 | 152 | 168 |
